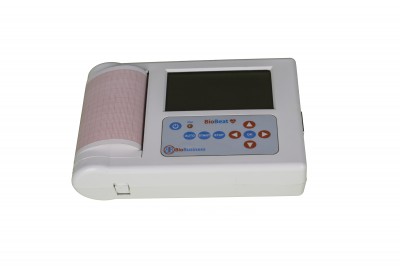

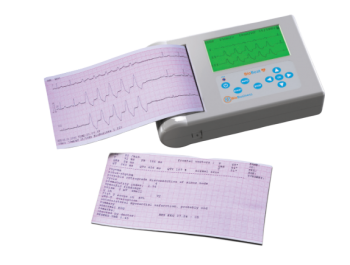

BioBeat Electrocardiograph is a sophisticated and modern electronic device. It is dedicated to recording ECG impulses in full range of 6 standard channels. Printout is made on thermal paper.

The device is equipped with a high resolution linear thermal printing unit and LCD. Aesthetic plastic cover together with the membrane keyboard makes the device easy to keep clean.



  • Built-in battery.
  • Uses a HES® Algorithm in ECG analysis.
  •  Uses arrhythmia analysis and interpretation of a verity of ECG data.
  • BIOBeat provides an analysis guide to help cardiologists understanding ECG data for analysis of the waveforms.
  • Detect and verify arrhythmia diseases.
  • can measure tables for:  P, QRS, ST, QT, QTc, etc. for overall ECG and per lead.

Leads                                                                                   12 leads–simultaneously

Sensitivity                                                                             2.5 / 5 / 10 / 20 mm/ mV

Recording Speed common-mode                                 5/10/25/50 mm/s

Rejection Ratio (CMRR)                                                 >100dB

frequency band                                                                    0.05 – 150Hz

Input impedance                                                                   >10M

PowerLineFilter                                                                   50/60HZ

MuscleFilter                                                                            25/35 Hz


# File Name Download
1 BioBeat Brochure click here to download
