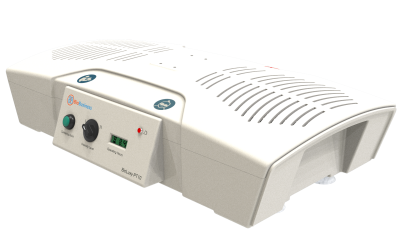

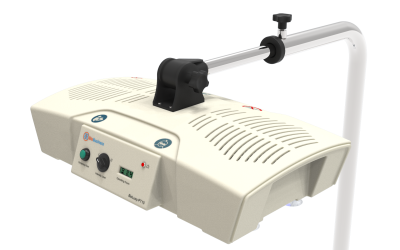

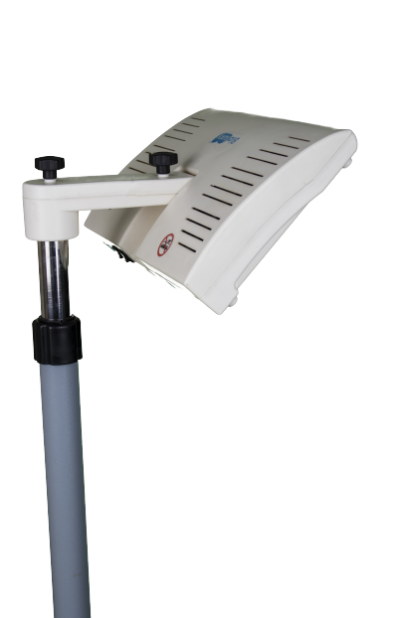

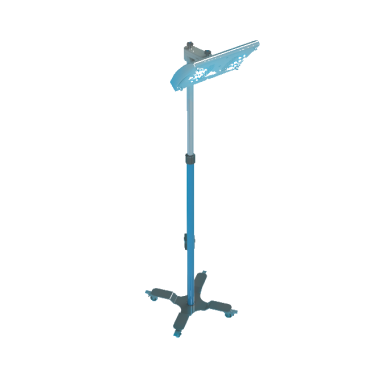

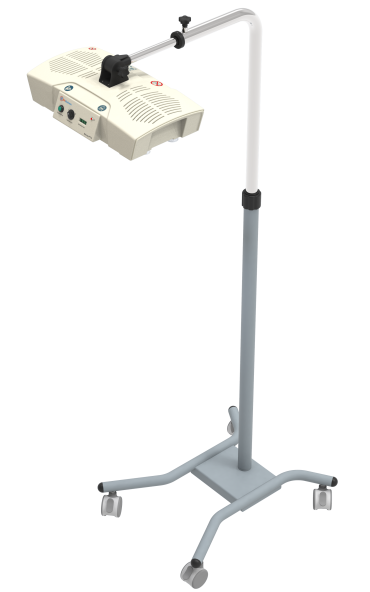

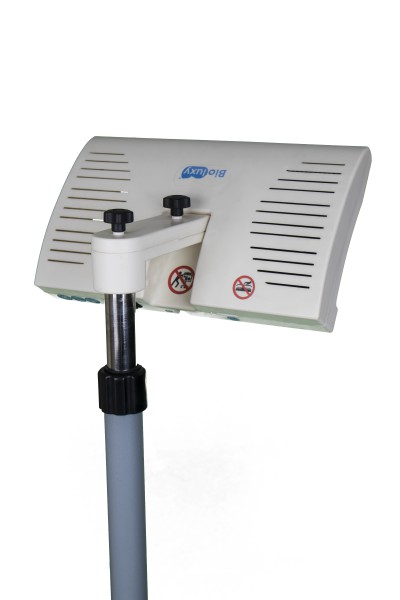

BioLUXY PT10TM



A user-friendly, cost-efficient and optimal LED phototherapy system that treats newborns with jaundice.

With a high irradiance of 45µW/cm2/nm and low irradiance >20µW/cm2/nm, BioLuxy allow streatment proportional with the need for the patient.

BioLuxy design ensure uniform light distribution to expose a large amount of infant’s skin for treatment and maximizing bilirubin breakdown.

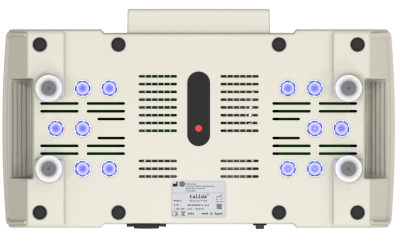

The red light lamp is used to locate the center point of blue light irradiation, ensuring that the baby receiving phototherapy is in the center of the irradiation area.

• 12 LEDs.
• 450 to 465nm Wavelength.
• Fanless design.
• Low Operating Noise.
• Durable 50,000 operating hours.
• Baby’s Center Positioning.
• Economical solution (Cost Effective).

Wavelength range        Dominate wavelength range (450-465) nm.

Irradiance                         high irradiance of 45 µW/cm2 /nm  ,  low irradiance > 22 µW/cm2 /nm

Light type                          Blue (most effective)

Light source                      LED

Light source safety         Thermal protection

LED time counter             One for LED lifetime

Led effective life                50,000 Hours

Uniformity Ratio             >0.4 (IEC compliant)
